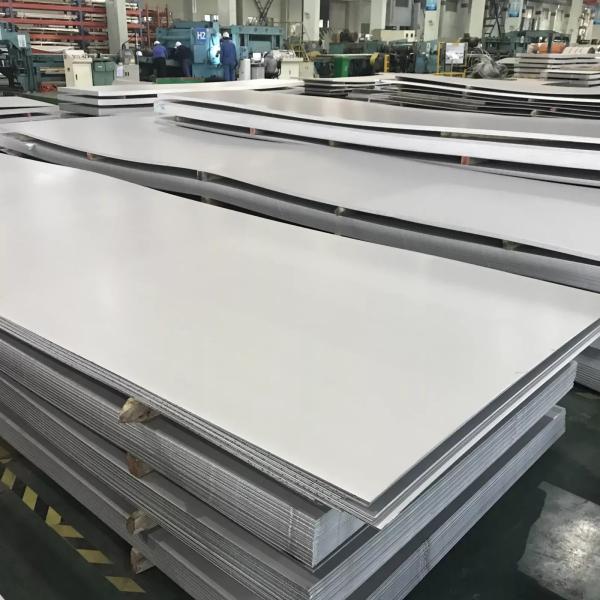

TISCO AISI ASTM 6mm thick 2B BA Fininsh 201 304 304l 904l 2205 310S 316 304 Stainless Steel Sheet
316 Stainless Steel Sheet & Plate Introduction
Grade 316 stainless steel belongs to the stainless steel series, which also includes 304, 302, 347, etc. It belongs to austenitic steel grades, including specialty alloys, manganese-chromium-nickel-nitrogen alloys, and common chromium-nickel alloys. This steel is common in many food processing, power and chemical plants. It is easily differentiated from other products due to its excellent corrosion resistance. In welding applications, this alloy comes in handy due to its low carbon content - minimal carbide precipitation.
Stainless Steel Sheet Parameter
| | |
| | | | |
| | Standard export sea-worthy packing | | |
| | ASTM, ASME, EN, BS, GB, DIN, JIS, etc |
| | 2B,BA,NO.1,8K,HL or as your requested |
| | 200series: 201,202,202cu,204 |
300series: 301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 |
400 series: 409,409L,410,420,430,431,439,440,441,444,446 |
| Others: 2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc |
| | 0.3-6.0mm for cold sheet scope; 3.0-100mm for hot rolled scope |
| | |
| | Architecture, Decoration, Chemical industry, Food processing equipment, Medicine, Fiber industry and Auto components. Equipment for food, paper, dyes, acetic acid, fertilizer, petrochemical and nuclear reactor industries and the installations along the sea coast,ect |
316 Stainless Steel Sheet & Plate Properties
The minimum tensile stress of grade 316 stainless steel is 515MPa, the minimum yield stress is 205MPa, and the minimum elongation is 50%, 40mm.
At room temperature, grade 316 stainless steel also has the following properties:
Density 99g/cm3
Thermal expansion 9 mm/m/°C
Resistivity 4μohm/cm
Thermal conductivity 3 W.m -1. °K-1
Elastic modulus 193 GPA
The following are the characteristics of several 316 stainless steel sheets
Corrosion resistance
Corrosion occurs when the outer surface of a component deteriorates due to a chemical attack. Once this happens, contaminants can enter the inner layers of the component. Corrosion resistance is probably the alloy's greatest asset. Because of this characteristic, you'll often hear it referred to as a "marine grade." 316 stainless steel contains at least 2% molybdenum, which provides higher corrosion resistance than other steels.
easy to process
Like other austenitic stainless steel, 316 stainless steel has excellent manufacturing properties. The material is very easy to deep draw, making it suitable for making sinks and similar stainless steel parts.
heat resistance
This stainless steel has excellent oxidation resistance in both continuous and intermittent use. The maximum temperatures in both cases were 925°C and 870°C, respectively.
Common Chemical Composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16 .0-1 8.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-1 9.0 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
packaging of the stainless steel sheet
We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged accordingto standard specification or customer's instructions. Special packing is available as per customer's requirement.
